Sizing resources at a single layer either wastes budget or slows applications down, and tuning multi-cluster applications by hand invites errors. This patented method models how application workloads cascade through your stack, from the app down to the cluster node. It forecasts the primary workload and the sub-workload demand it creates, then pre-allocates GPU/CPU, memory, and network resources at each layer. You run on-prem and cloud environments with lower hidden operating costs and fewer capacity surprises.
The Challenge of IT/Cloud Operations
Monitoring tools report symptoms layer by layer. Multi-Layer Correlation traces them back to the workload that caused them.
Reactive by Default
Teams find resource problems after the system slows down or fails. Recovery takes time, and in an AI training run, one minute of downtime can waste hours of compute.
Siloed Visibility
Teams monitor GPU/CPU, memory, network, and storage separately. No single tool shows how a load spike in one sub-application spreads across the stack, so you see it first as an incident.
Over-Provisioning Waste
Without accurate prediction, teams over-allocate GPU and memory capacity as a buffer. Infrastructure costs climb for capacity that sits idle, and a sudden demand surge can still exceed what you reserved.

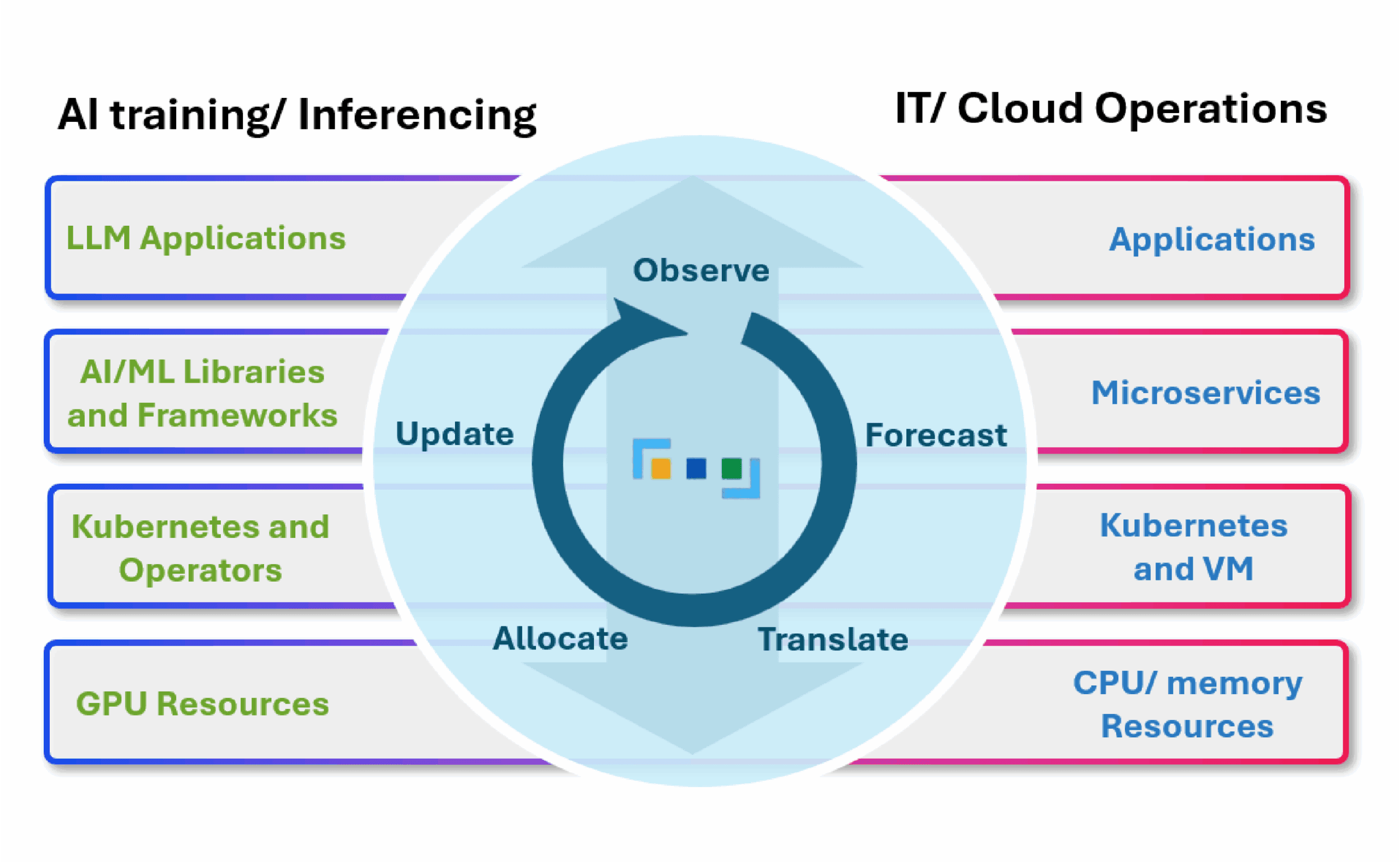

What It Is
Multi-Layer Correlation is ProphetStor’s patented method for mapping causal relationships between application workloads, sub-application behavior, and infrastructure resources. It uses those maps to predict the resources you need next, before demand arrives. (U.S. Patent No. 11,579,933 B2)
The technology measures how a change at one layer moves the others. It computes cosine similarity over three-point time windows to find the resources most tightly coupled to workload changes, and it keeps a causal model of your stack that updates as conditions change.
Layer 1 — Main Application Workload
The system tracks the main application’s workload as request volume per unit time. An ARIMA time-series model forecasts the workload at T+1 before it arrives, and every downstream decision starts from that forecast.
Layer 2 — Sub-Application Behavior
The main application runs on sub-components such as HTTP servers, databases, messaging queues, and search engines, each with its own resource footprint. Multi-Layer Correlation measures how each sub-component’s usage tracks the main workload, then assigns higher importance weights to the ones that react most to demand changes.
Layer 3 — Infrastructure Resources
The system tracks GPU/CPU cores, memory, network bandwidth, and storage at the node level. First-correlation values show which resources move with the workload. The system adjusts only resources above the 0.5 correlation threshold and ignores the noise.

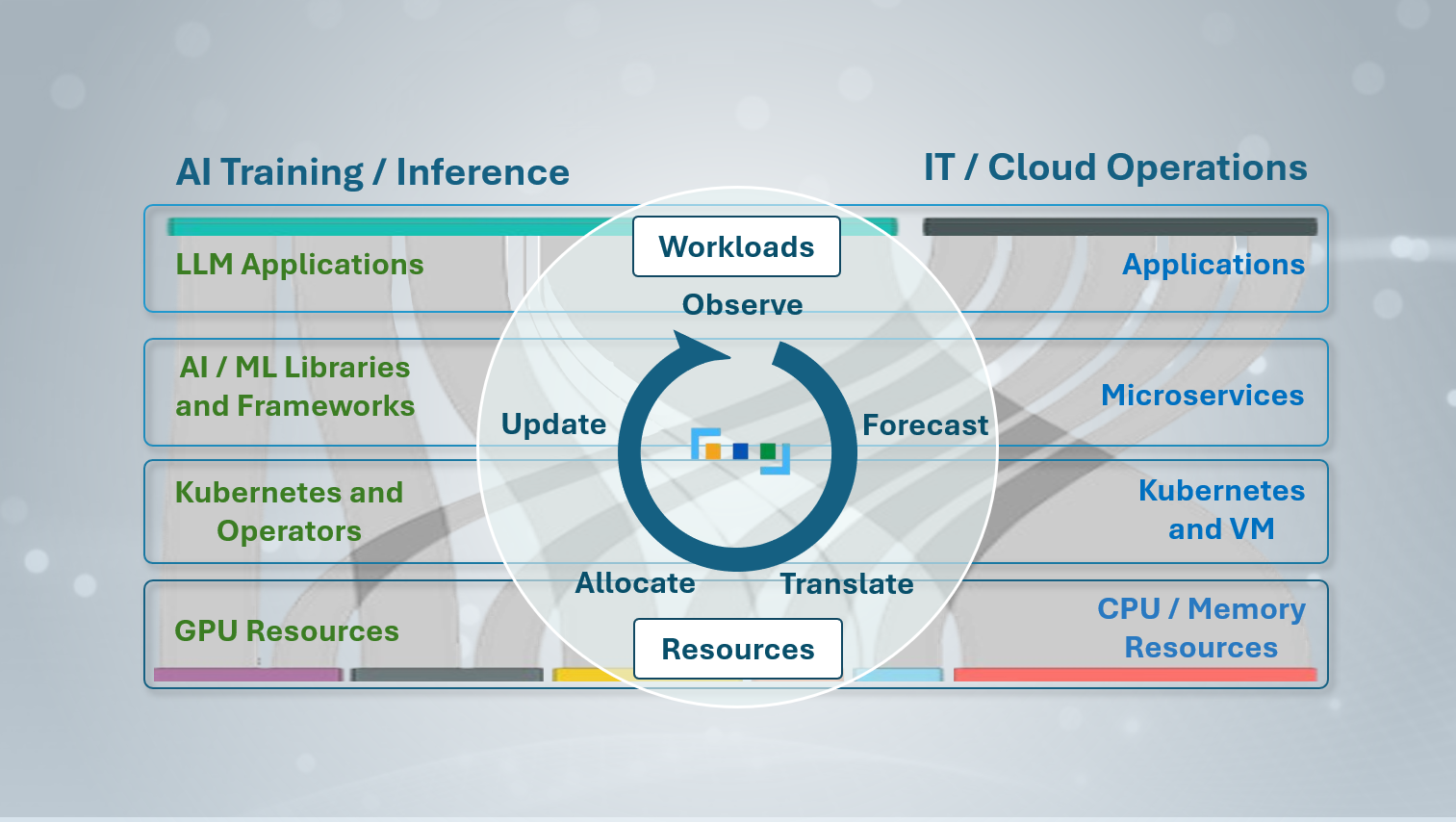

Patented Multi-Layer Correlation Mechanism Applied to GPU and IT/Cloud Resource Management | ProphetStor
How It Works
Four automated steps, running continuously — no manual intervention required.
STEP 01 · COLLECT
Continuous Data Collection
The system collects workload and resource usage from all nodes at regular intervals. It calculates first and second correlation values between layers in real time from three-point time windows, so the model reflects live dependencies.
STEP 02 · CORRELATE
Cascade Causal Analysis
Cosine similarity flags the physical resources that correlate above the 0.5 threshold with upper-level workload changes. The system then ranks sub-applications by importance weight, so the highest-weighted ones keep SLA priority when capacity runs short.
STEP 03 · PREDICT
Predictive Resource Modeling
A usage-amount model built on regression and Bayesian learning forecasts the resource increment for each future interval. It works from historical patterns and the predicted application workload.
STEP 04 · DEPLOY
Automatic Allocation
The system provisions additional capacity and distributes it to sub-applications by correlation weight, serving the highest-impact components first. Nobody has to tune thresholds or approve each change.
Why It Matters
Proactive
Resources ready before demand arrives
Full-Stack
App/ sub-app/ infra in one correlation model
Precise
Adjusts only high-correlation resources
Automated
Provisions nodes with no manual steps
Multi-Layer Correlation forecasts the load your stack will carry next and provisions for it before it lands.
ProphetStor’s other patented technologies, including Spatial-Temporal GPU Optimization and Predictive Self-Driving Autoscaling, build on this causal model. GPU placement and cost-optimized autoscaling both need to know why a resource is in demand before they can act on it.
AI training clusters, ERP systems, and Kubernetes microservices share one trait: sub-component behavior drives infrastructure load. In those environments, provisioning ahead of the cascade decides whether you meet your SLA.
Conventional Monitoring v.s. ProphetStor
Conventional Monitoring Approach
✕
Monitors each layer on its own, with metrics in silos
✕
Fires alerts after the problem occurs
✕
Can’t explain why a sub-component is under stress
✕
Relies on manual judgment and IT experience to allocate resources
✕
Predicts per component and misses cascade effects
ProphetStor Multi-Layer Correlation (patented)
✓
Correlates all layers in one causal model
✓
Provisions resources before the demand spike arrives
✓
Traces sub-application behavior to infrastructure load
✓
Allocates by correlation weight with no manual judgment
✓
Predicts infrastructure needs at the bottom from workload at the top
Where It Applies
Multi-Layer Correlation applies to complex, multi-tiered IT architectures where top-level workloads cascade into multi-component infrastructure demands. By establishing continuous causal intelligence from applications down to bare-metal nodes, the technology eliminates blind spots across GPU, CPU, VRAM, system memory, and network throughput. It seamlessly integrates with Kubernetes (HPA/VPA), VMware vSphere, and major public cloud autoscaling frameworks.
AI / ML infrastructure
Training & inference pipelines
GPU clusters that run several AI workloads carry complex dependencies across sub-components. Multi-Layer Correlation sends GPU demand forecasts to ProphetStor’s GPU optimizer, and together they push utilization to near 100%.
Enterprise systems
ERP and business-critical apps
ERP systems run dozens of sub-applications that spike during month-end close and peak business cycles. Allocating ahead of those spikes prevents slowdowns in systems where an hour of downtime can cost millions.
Cloud & Kubernetes
Containerized microservices
Sub-applications in Kubernetes share node resources. When the model adds nodes, it distributes the new capacity by impact weight, and the highest-correlation sub-components get it first.
U.S. Patent: Multi-Layer Correlation
ProphetStor was granted a U.S. patent for the method of establishing system resource prediction and resource management models through multi-layer correlations. The patent covers the full pipeline: continuous multi-layer data collection, cosine-based cross-layer correlation analysis with threshold filtering, ARIMA time-series workload forecasting, ML-based predictive resource modeling, and automated node deployment with importance-weight-based sub-application allocation.
Frequently Asked Questions
What is Multi-Layer Correlation in AIOps?
ProphetStor’s patented method for mapping the causal relationships between application workloads, sub-application behavior, and infrastructure resources — and using those maps to predict precise resource demands before they arrive. Instead of monitoring each component independently in silos, Multi-Layer Correlation measures how changes at each layer cascade through the full stack, producing a living causal model of your entire GPU or cloud infrastructure. This technology is legally protected by U.S. Patent US11579933B2.
How does Multi-Layer Correlation differ from traditional infrastructure monitoring?
Traditional monitoring tools observe each infrastructure layer independently — GPU, CPU, memory, and network metrics sit in separate silos. They are reactive by design, firing alerts after a problem has already occurred. Multi-Layer Correlation builds a unified causal model. It traces exactly how a spike in primary application workload cascades into sub-applications and infrastructure resource pressure. By providing this automated root-cause intelligence, it allows teams to proactively pre-allocate capacity before the demand spike hits, shifting operations from reactive firefighting to fully autonomous infrastructure management.
What are the three layers analyzed by this patented technology?
The three interconnected layers are:
(1) Main Application Workload — the system tracks request volume per unit time and uses an ARIMA time-series model to forecast workload at T+1 before it arrives;
(2) Sub-Application Behavior — the main application’s constituent components—such as HTTP servers (NGINX), databases, messaging queues (Kafka), or search engines— are measured for their correlation with the main workload, with importance weights assigned based on sensitivity to demand changes;
(3) Infrastructure Resources — GPU, CPU cores, memory, network bandwidth, and storage are tracked at the node level. Only resources with a correlation value above 0.5 are adjusted, eliminating noise and focusing on what actually drives performance.
How does the predictive resource modeling work under the hood?
Prediction runs in four automated steps.
First, workloads and resource usage across all nodes are collected at regular intervals, with first and second correlation values calculated in real time from three-point time windows.
Second, cosine similarity identifies which physical resources are highly correlated with upper-level workload changes, dynamically ranking sub-applications by importance weight.
Third, a predictive model using Regression and Bayesian Learning forecasts precise resource increments for future intervals, driven by historical patterns and AI-predicted application workload trends.
Fourth, additional capacity is provisioned and distributed to sub-applications by correlation weight automatically, with no manual intervention or threshold tuning required.
What is the role of Multi-Layer Correlation in an AI Factory?
In next-generation GPU data centers, Multi-Layer Correlation serves as the “Sensory System” for the AI Factory. Just as a biological sensory system provides situational awareness, this technology gives the AI Factory Orchestrator full-stack visibility into how complex AI models (such as LLM training and large-scale inference pipelines) translate into infrastructure strain. By feeding accurate, predictive demand signals into ProphetStor’s GPU Booster and Scaling Engine, it enables near-100% GPU utilization, guarantees zero OOM events, and unlocks significant energy savings (up to 30%) in smart liquid cooling systems.
What platforms, environments, and enterprise integrations are supported?
Multi-Layer Correlation is platform-agnostic and thrives in any environment where sub-component behaviors drive hardware loads. It natively supports:
AI/ML Infrastructure: GPU clusters running distributed training workloads and high-throughput inference on platforms like NVIDIA DGX Cloud.
Cloud-Native & Kubernetes: Microservices sharing node resources, with direct integration into Kubernetes HPA/VPA, Datadog, Sysdig, and Prometheus.
Enterprise & Virtualization: High-density ERP systems running on VMware vSphere or major public clouds (AWS EC2, Azure VM, Google Compute Engine). It supports on-premises, public cloud, and hybrid deployments.
Is ProphetStor’s Multi-Layer Correlation technology patented?
Yes. ProphetStor was granted U.S. Patent US11579933B2 for its groundbreaking “Method for establishing system resource prediction and resource management model through multi-layer correlations.” The granted patent comprehensively covers the full automation pipeline: continuous multi-layer metric data collection, cosine-based cross-layer correlation analysis, threshold filtering, ARIMA workload forecasting, ML-based predictive resource modeling, and automated node deployment with importance-weight allocation. You can view the full legal filing and claims directly on Google Patents.
